Earthed vs. Grounded

1. Understanding the Basics

Ever been tinkering with electronics and heard someone say “make sure it’s earthed” or “ground it properly”? It’s enough to make your head spin faster than a ceiling fan on high. Are they the same thing? Are we talking about connecting wires to the Earth itself, or is there more to it? Let’s demystify this electrical enigma, shall we?

Think of it like this: electricity is like water. It needs a path to flow. A circuit is that path. But sometimes, things go wrong. A wire might fray, insulation might crack, and suddenly a metal appliance case becomes “live,” meaning it’s carrying a potentially dangerous voltage. Yikes!

Earthing (the British term) and grounding (the American term) are both safety measures designed to provide an alternative, low-resistance path for that stray electricity to flow. Instead of flowing through you when you touch that appliance, it flows harmlessly back to the source, usually tripping a circuit breaker or blowing a fuse in the process. In essence, it’s a quick exit strategy for errant electrons.

So, are they the exact same thing? Well, almost. The fundamental principle is identical: providing a safe route for fault current. The difference lies more in the terminology and some minor variations in how the electrical systems are implemented in different countries. Think of it as the difference between “fries” and “chips” — same potato, different dialect!

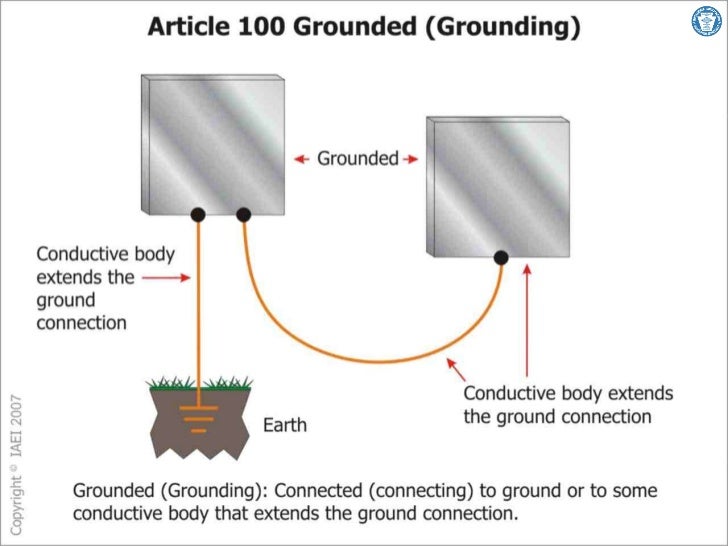

Bonded Vs. Grounding

The Nitty-Gritty

2. Delving Deeper into the Electrical Abyss

Okay, so we know it’s about safety. But how exactly does this magical grounding/earthing thing prevent us from becoming human lightning rods? It’s all about creating a connection to the Earth (literally!) or to a point in the electrical system that is at the same potential as the Earth.

In most homes, you’ll find a grounding wire (usually green or bare copper) connected to the electrical panel. This panel, in turn, is connected to a grounding electrode — often a metal rod driven into the ground outside your house, or even the metal water pipe entering your building. This creates a low-resistance path directly to the Earth.

When a fault occurs (like that frayed wire touching the appliance case), the electricity takes the path of least resistance. Because the grounding wire offers a much lower resistance route than your body, the current flows through the grounding wire back to the source. This sudden surge of current triggers the circuit breaker or fuse, cutting off the power and preventing a shock.

Imagine trying to cross a river. You could wade across, risking getting swept away. Or you could use a sturdy bridge. The grounding wire is like that bridge — a safe, reliable path for the electricity to get where it needs to go without causing harm.

What Is Neutral Grounding? Definition, Types & Advantages

Regional Differences

3. Across the Pond

While the underlying principle is the same, there are some subtle differences in how earthing and grounding are implemented in the UK and the US, primarily due to different wiring standards and regulations.

In the UK, the term “earthing” is predominantly used, and the wiring system is often based on the TN-S (Terra Neutral Separate) or TN-C-S (Terra Neutral Combined Separate) systems. In these systems, the neutral and earth conductors are separate for most of the circuit, providing a robust grounding path. UK plugs also typically have three pins: live, neutral, and earth, ensuring a dedicated grounding connection.

In the US, “grounding” is the common term, and the electrical systems are generally based on a grounded neutral system. While similar in principle, there might be slight variations in how the grounding is implemented and the specific types of grounding conductors used. US plugs often have two or three prongs, with the third prong being the ground connection.

These differences aren’t huge, but it’s important to be aware of them, especially if you’re working with electrical systems in different countries. Always consult with a qualified electrician who is familiar with the local standards and regulations.

Earthing And Grounding In Electrical

Why This Matters

4. Safety First

So, why should you care about all this earthing/grounding business? Simple: your safety and the safety of everyone around you. A properly earthed or grounded electrical system is a critical safety feature that can prevent electric shocks, electrocution, and even electrical fires.

Imagine touching a faulty appliance without a grounding connection. The electricity could flow through your body to the ground, resulting in a potentially fatal electric shock. Grounding provides that alternative path, diverting the current away from you and preventing injury.

Beyond personal safety, proper grounding also helps protect your electrical equipment and appliances. Surges in voltage can damage sensitive electronics, but a good grounding system can help dissipate these surges and prevent damage. It’s like having a tiny electrical bodyguard for all your gadgets.

If you’re unsure about the grounding in your home or suspect a problem, don’t hesitate to call a qualified electrician. They can inspect your system, identify any issues, and ensure that your home is properly grounded for maximum safety. It’s an investment in peace of mind — and potentially in your life.

Difference Between Grounding, Earthing And Bonding

FAQ

5. Time for Some Quick Q&A

Let’s tackle some frequently asked questions about earthing and grounding.

Q: What happens if my house isn’t properly grounded?

A: If your house isn’t properly grounded, you’re at a significantly higher risk of electric shock. Appliances can become “live” without you knowing, and touching them could be dangerous. Also, your electrical equipment is more vulnerable to damage from power surges.

Q: Can I ground an appliance myself?

A: It’s generally not recommended to try grounding an appliance yourself unless you have a solid understanding of electrical systems and wiring. It’s best to leave this to a qualified electrician who can ensure the grounding is done correctly and safely.

Q: How do I know if my house is properly grounded?

A: The best way to know for sure is to have a qualified electrician inspect your electrical system. They can perform tests to verify the grounding is working correctly. You can also look for three-prong outlets in your home, which typically indicate a grounded system. However, the presence of three-prong outlets doesn’t guarantee proper grounding, so professional inspection is always recommended.

Q: Is it expensive to have my house grounded/earthed?

A: The cost can vary depending on the size of your home and the complexity of the electrical system. However, it’s generally a relatively affordable investment compared to the potential cost of an electric shock or electrical fire. Get a quote from a qualified electrician to get a better idea of the cost for your specific situation.
