Understanding RCCBs

1. What’s an RCCB Anyway? (And Why Should I Care?)

Okay, let’s break down the jargon. An RCCB, or Residual Current Circuit Breaker, is basically a super-sensitive electrical safety device. Think of it as a bodyguard for your electrical circuits. Its main job? To detect even tiny leaks of electricity to earth, way smaller than what it takes to blow a regular fuse. When it senses one of these leaks, bam! It trips the circuit, cutting off the power and potentially saving you from a nasty shock — or worse.

Now, why the specific number of 100mA? That refers to the tripping current. In simpler terms, it’s the amount of current leakage the RCCB will tolerate before it throws the switch. So, a 100mA RCCB will trip when it detects a 100 milliampere (0.1 amp) leakage. That might sound like a small amount, but trust me, it’s enough to cause serious harm.

Different RCCB sensitivity ratings exist, like 30mA, which are designed for even more sensitive protection, mainly against direct contact shocks. But what about 100mA? That’s the key focus here. When is a 100mA RCCB the right tool for the job? That is what we will dive into next.

So, stay with me; it’s not as complicated as it sounds. You wouldn’t want to install the wrong kind of protection any more than you’d wear flip-flops to climb Mount Everest, right? Getting the RCCB right is critical for safety.

RCCB ELCB SELECTION OF SENSITIVITY 30mA,100mA & 300mA YouTube

When 100mA RCCBs Shine

2. The Ideal Spots for 100mA Protection

100mA RCCBs are generally used where you need a balance between sensitivity and avoiding nuisance tripping. Think of situations where small earth leakages are likely to occur under normal operating conditions, but you still want significant protection against serious faults. They offer earth fault protection, which means they are more useful to detect abnormal current flow.

For example, imagine a workshop with several pieces of machinery that, under normal operation, might have very minor earth leakage currents. A 30mA RCCB might trip too frequently in this situation, causing unnecessary downtime. A 100mA RCCB offers a more tolerant threshold, preventing those pesky nuisance trips while still providing a decent level of protection against larger, more dangerous faults. This avoids unnecessary stoppage, maintaining productivity, and increasing safety.

Another common application is in distribution boards that supply multiple circuits. In this scenario, a 100mA RCCB can provide backup protection to individual 30mA RCCBs installed on specific circuits. This layered approach adds redundancy and enhances overall safety.

Agricultural buildings are another area where 100mA RCCBs are often deployed. Due to the often damp and dusty environments, there’s a higher risk of earth leakage. The 100mA rating helps to avoid nuisance tripping caused by these environmental factors, while still providing valuable protection for people and livestock. The key is to find a balance between sensitivity and practical operation.

How RCCB Protects Us From Electric Shock What Is MA In Where We

The Benefits and Limitations of 100mA RCCBs

3. Weighing the Pros and Cons

Like any tool, a 100mA RCCB has its advantages and disadvantages. On the plus side, it provides a good compromise between sensitivity and tolerance to nuisance tripping. This makes it suitable for environments where minor earth leakages are expected. Plus, it offers a significant level of protection against electrical shock and fire hazards, especially in situations involving indirect contact.

However, it’s important to understand its limitations. A 100mA RCCB isn’t designed to protect against direct contact shocks as effectively as a 30mA device. So, in areas where there’s a high risk of direct contact with live parts, a more sensitive RCCB is usually the better choice. Moreover, remember that electrical installations can degrade over time, increasing the risk of earth leakage. Regular testing and maintenance are crucial to ensure the RCCB functions correctly.

Consider it like this: A 100mA RCCB is like a reliable all-purpose wrench. It’s good for many jobs, but sometimes you need a specialized tool for a specific task. Knowing when to use which tool is key to achieving the best results and ensures your safety.

Ultimately, the choice of RCCB rating depends on a thorough assessment of the specific risks and conditions of the electrical installation. Consulting with a qualified electrician is always recommended to ensure you’re selecting the right device for the job. Safety standards and electrical codes also play a vital role in proper selection and application.

RCCB 63A, 4 Pole, 100mA, Legrand RCBOs Electric Buy

Installation Considerations for 100mA RCCBs

4. Getting It Right

Installing a 100mA RCCB isn’t rocket science, but it’s certainly not something you should attempt if you’re not a qualified electrician. Incorrect installation can render the device ineffective or even dangerous. The RCCB needs to be properly wired into the circuit, ensuring correct polarity and secure connections. Always follow the manufacturer’s instructions and relevant electrical codes.

Another important consideration is the earthing system. The RCCB relies on a properly functioning earthing system to detect earth leakage faults. If the earthing is inadequate or faulty, the RCCB may not trip correctly, leaving you unprotected. Regularly inspect your earthing system to ensure it’s in good working order.

Testing the RCCB after installation is absolutely essential. Most RCCBs have a test button that simulates an earth leakage fault. Pressing this button should cause the RCCB to trip, confirming that it’s functioning correctly. Ideally, you should test your RCCBs regularly, perhaps every few months, to ensure they remain in good working order.

Beyond the basics, remember to consider the environmental conditions. Excessive moisture, dust, or temperature extremes can affect the performance of the RCCB. Choose a device that’s rated for the specific environmental conditions in which it will be installed. By paying attention to these details, you can ensure your 100mA RCCB provides reliable protection for years to come.

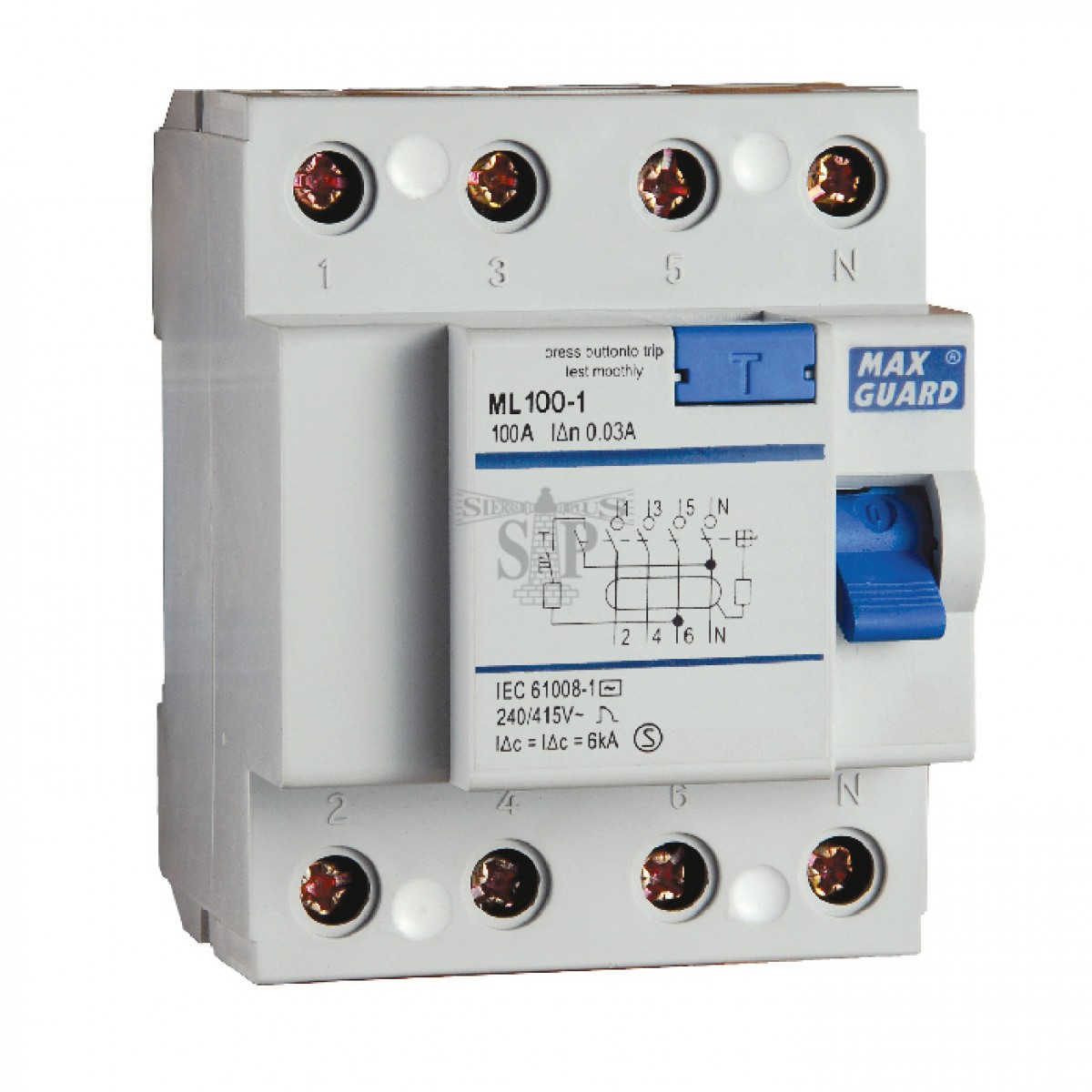

Maxguard 100A 4 Pole 100mA300mA ML1001 Type AC RCCB (White)

Frequently Asked Questions (FAQs) About 100mA RCCBs

5. Your Burning Questions Answered!

Let’s tackle some common questions people have about 100mA RCCBs:

Q: Can I use a 100mA RCCB instead of a 30mA RCCB?

A: It depends on the application. 30mA RCCBs offer better protection against direct contact shocks and are generally recommended for circuits supplying sockets and sensitive equipment. 100mA RCCBs are more suitable for situations where nuisance tripping is a concern, such as circuits with minor earth leakage under normal operation. But if you need a 30mA level of protection, it is not advisable.

Q: How often should I test my 100mA RCCB?

A: It’s generally recommended to test your RCCB every 3 to 6 months using the test button. This ensures it’s still functioning correctly and provides peace of mind. If you have any doubts about its performance, consult a qualified electrician.

Q: My 100mA RCCB keeps tripping. What could be the problem?

A: Frequent tripping indicates an earth leakage fault in the circuit. This could be caused by faulty equipment, damaged wiring, or moisture ingress. It’s important to investigate the cause of the tripping and rectify the fault. Don’t simply reset the RCCB without finding the underlying problem. Consult a qualified electrician to diagnose and repair the issue safely.

Q: Are 100mA RCCBs suitable for swimming pools or bathrooms?

A: No, generally not. For these high-risk environments, 30mA RCCBs are mandatory due to the increased risk of electric shock. The higher sensitivity provides greater protection against direct contact with live parts.

Hopefully, this clarifies when and how to utilize 100mA RCCBs properly. Always prioritize safety and consult a professional if you’re unsure.
